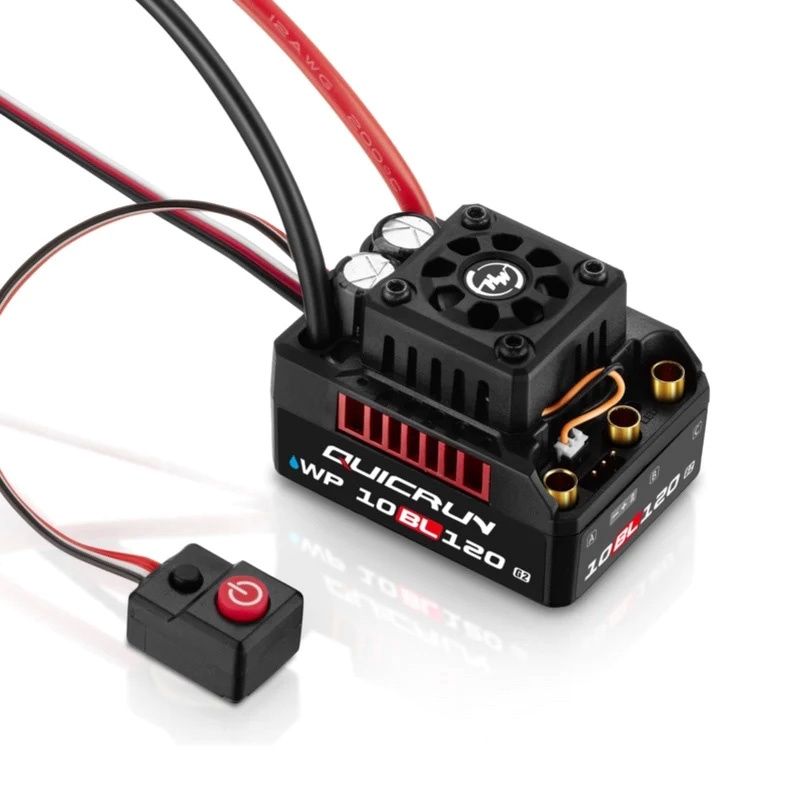

10BL120 G2 ESC (2-4S) 1/10th Sensorless Brushless System

The Hobbywing QuicRun WP 10BL120 G2 ESC builds on the previous generation controller and adds the most asked for features from users! The IP-67 Ingress Protection Rating guarantees excellent waterproof and dustproof protection. This allows the ESC to be used in challenging environments including those with mud, sand, ice, snow, and water without damaging the unit. The innovative intelligent freewheeling technology enables higher driving efficiency and lowers the operating temperature of the ESC. The powerful built-in BEC is able to provide a stable continuous current of 5 Amps, and a peak current of 10 Amps. Combined with the adjustable output voltage of 6 Volts or 7.4 Volts, the BEC is capable to run today's demanding digital servos without an external power source. All of the energy flowing through the system builds up heat. The integrated radiator design combined with the patented copper thermal conduction heat sink on the internal power board of the ESC provides excellent heat dissipation. The added fan ensures you can keep running even when the ambient temperatures climb high. Special attention has been paid on the built-in capacitors. By using high capacity 1640uF capacitors and built in thermal protection, you get piece of mind as well as easy setup when adding the ESC to your favorite RC platform.

Includes

• (1) QuicRun 10BL120 WP G2 ESC
• Power wires - factory installed
• HOBBYWING decal
• Accessories

Features

• Excellent waterproof and dustproof performance for use in various environments.
• Smart freewheeling technology provides a higher driving efficiency and lower operating temperature, with improved stability and reliability.
• Built-in powerful switch mode BEC provides continuous current up to 5A, peak current up to 10A, and supports 6V/7.4V operation for today's demanding servo applications.
• Multiple protection functions include: battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
• An independent programming port allows you to connect the programming card without pulling the throttle cable out of the receiver.

Specifications

• Cont./Peak Current: 120A / 760A
• Motor Type: Sensorless / Sensored Brushless Motor (Sensorless mode only)
• Applications: 1/10th Short Course Truck, Monster truck
• Waterproof: IP67 Rating
• Input Wires: Black-12AWG-150mm / Red--12AWG-150mm
• Output Connectors: 4.0mm Gold (female)
• Motor Limit 3S LiPo: KV < 4000 3660 size motor
• Motor Limit 4S LiPo: KV < 2600 4268 size motor
• LiPo Cells: 2-4s LiPo
• BEC Output: 6V/7.4V adjustable, continuous current 5A (switch-mode)
• Cooling Fan: 25x25x10mm, Powered by built-in BEC
• Size (LxWxH mm) / Weight(g) : 52.8x39.8x38.2mm / 119g
• Programming Port: Independent programming port
