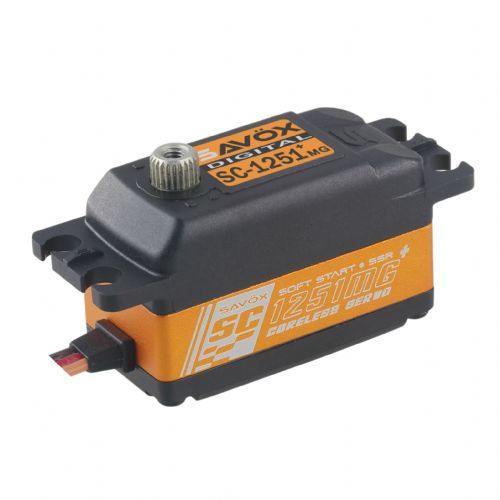

Low Profile Digital Servo with Soft Start, 0.09sec / 125oz @ 6V

The SC-1251MG is a high speed, low profile servo which combines leading edge technology with metal gear train to make an ideal option when space or weight is a concern.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Metal gear train ensures durability under harsh situations.
• Aluminum case provides cooler operating temperatures.

Specifications:

• Torque @ 4.8v - 7.0kg/97.2oz-in
• Torque @ 6v - 9.0kg/125.0oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 44.5g
